  • Props - 3 blade to 4 blade swap

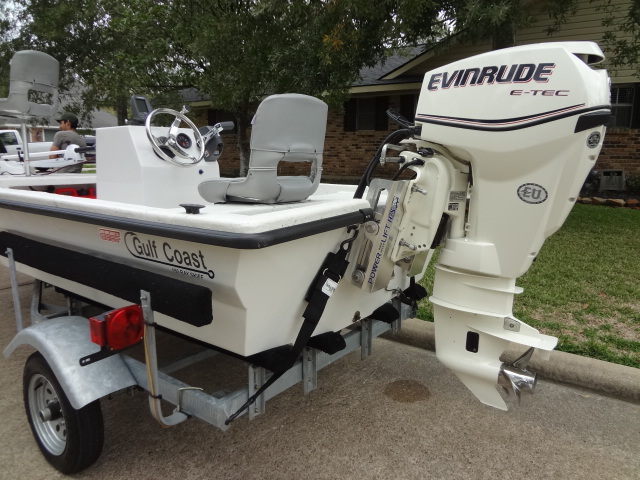

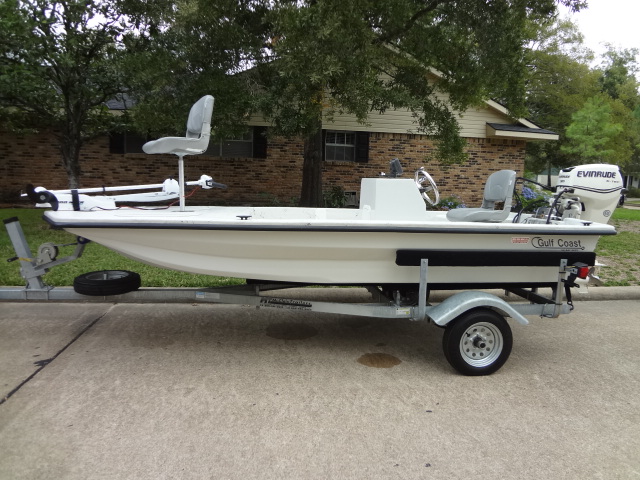

    We have a small 15 foot boat that (in my opinion) takes way to long to get up on plane. After it gets on plane, it starts to porpoise. The motor is a new 30 horse ETEC with a 3 blade 10x12P stainless prop. Should I exercise all of my options with a 3 blade before switching to a 4 blade. Moving fast is not priority. Getting up on plane at a low RPM is.
    Attached Files

  • #2
    A cavitation plate like a Shaw or a Shallow Blaster should help with both problems.

    Comment


    • #3
      Originally posted by svs View Post
      A cavitation plate like a Shaw or a Shallow Blaster should help with both problems.
      Fixen to put one on my boat,I believe it will make a good improvement in both catogorys....We could check with Bauman!
      West Bay Sensai...

      Comment


      • #4
        See if you can borrow a four blade prop to try out. I might go back to the dealer and ask them what the heck? I mean if the tilt and jack plate are all the way down the boat should not porpoise if set up right.
        Bacon Bacon Bacon!!!

        Comment


        • #5
          No interest in going back to the dealer. Our last experience with the dealer was not good. I'll keep the story off the forum because I don't know all the details. I want to try and fix the situation on my own.

          I feel the jack plate is too heavy. I will be taking the CMC off and replacing it with something half the weight like the Atlas Micro Jacker. Secondly, I would like to try and reprop the motor instead of adding a cavitation plate. I will be reaching out to the sponsors soon. I just wanted to hear some of your thoughts.

          Comment


          • #6
            The right pitch and trim angle should do it. In my opinion you would waste horse power with a 4 blade.
            Beandaddy

            Comment


            • #7
              If it's trimmed all the way in, and down, it should plane rather quickly. I agree 100% with installing a cavitation plate. There is no other modification for your boat that will cure the slow planing issue quicker. I have installed one on every boat I have ever owned. The best money you'll spend. Save the money on the new jack plate. Weight is not the problem, IMO. A lack of horsepower may also be contributing to this problem. Your seating position is definitely contributing. Do the cavitation plate first. You'll be glad you did.


              As far as props go, a 4 blade prop is more suitable for a good bite(less cavitation) closer to the surface of the water, and while making a turn, than a 3 blade. 5 blades even more so. If you're gonna run skinny, with the motor up, the more blades the better. Be sure to reduce the pitch as you add blades, or you'll end up with too much prop for the motor to spin at higher rpm.


              Hope this helps! Good luck!
              "I love this country, it's the government I'm afraid of!"

              Comment


              • #8
                Seems like a little more boat than that engine can easily deal with, The right prop can help with lift off so to speak,Porposing is a differant problem.A cavitation plate could eliminate this issue,It focuses the water around your prop and will give control!
                West Bay Sensai...

                Comment


                • #9
                  Originally posted by FishNette View Post
                  If it's trimmed all the way in, and down, it should plane rather quickly. I agree 100% with installing a cavitation plate. There is no other modification for your boat that will cure the slow planing issue quicker. I have installed one on every boat I have ever owned. The best money you'll spend. Save the money on the new jack plate. Weight is not the problem, IMO. A lack of horsepower may also be contributing to this problem. Your seating position is definitely contributing. Do the cavitation plate first. You'll be glad you did.


                  As far as props go, a 4 blade prop is more suitable for a good bite(less cavitation) closer to the surface of the water, and while making a turn, than a 3 blade. 5 blades even more so. If you're gonna run skinny, with the motor up, the more blades the better. Be sure to reduce the pitch as you add blades, or you'll end up with too much prop for the motor to spin at higher rpm.


                  Hope this helps! Good luck!
                  Awesome!!! Thank you for taking the time to share your knowledge.

                  Comment


                  • #10
                    Put a 70 on it.

                    Comment


                    • #11
                      Originally posted by Beandaddy View Post
                      Put a 70 on it.
                      In hindsight, I wish I would have hung a 40 back there.

                      Comment


                      • #12
                        Originally posted by Paul Marx
                        Loss weight .
                        It is my wife's boat. I'll pass on the advice.

                        Comment


                        • #13
                          4 blade is always going to be better out of the hole and still needs proper pitch, diameter and cupping. Lot of people know as well whith the 4 blade you will loose about 400 rpm on top end if comparable to the same pitch diameter, and cupped 3 blade propeller. Louie on here is the man with major knowledge of what you would want to run on the boat. Also a 4 blade you will loose reverse power considerably.
                          Bryan Evans

                          Boat Werx of Texas
                          (AKA Evans Marine Services)
                          4340 19th St.
                          Bacliff, Texas 77518
                          http://evansmarine.net
                          http://boatwerxtx.com
                          main@boatwerxtx.com
                          281-559-BOAT (2628)

                          Comment


                          • #14
                            Originally posted by buoy37 View Post
                            In hindsight, I wish I would have hung a 40 back there.
                            irf its carbed just cange to 40 jets and hotter plugs, you will get more power. But looking at the rig, the 30 if set up right should move that boat around 27-30MPH.
                            Bryan Evans

                            Boat Werx of Texas
                            (AKA Evans Marine Services)
                            4340 19th St.
                            Bacliff, Texas 77518
                            http://evansmarine.net
                            http://boatwerxtx.com
                            main@boatwerxtx.com
                            281-559-BOAT (2628)

                            Comment


                            • #15
                              I guess your about to find out Paul, we jus made your Yami 70 a 90
                              Bryan Evans

                              Boat Werx of Texas
                              (AKA Evans Marine Services)
                              4340 19th St.
                              Bacliff, Texas 77518
                              http://evansmarine.net
                              http://boatwerxtx.com
                              main@boatwerxtx.com
                              281-559-BOAT (2628)

                              Comment
